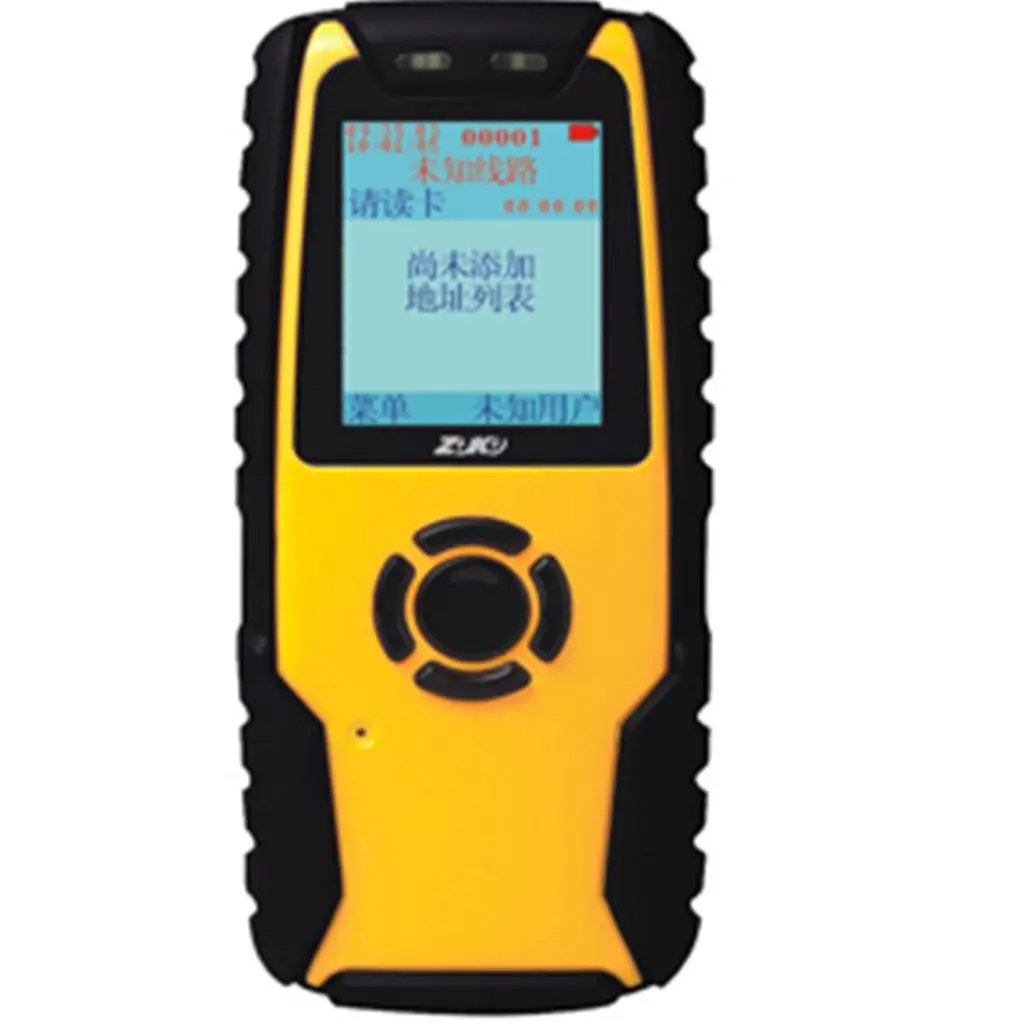

125K/13.56MHz Rifd TFT Screen 100，000pcs records Guard Tour System Patrol Recorder
Model Number : K2000
Guard tour system |
RFID: 13.56MHz |
ISO Standards: ISO15693-2, Tag-it HF |
CPU: 32bit ARM CPU |
EMS: 256MB Flash |
LCD: TFT160*128LCD, 65K |
Communicate: USB cable |
Language: English/Arabic/French...... |
Power Dissipation: <150mA |
Battery: 3.6V chargeable lithium battery |
Case: Plastic |
Sizes: 12*5.2*2.4cm |
Weight: 128g |
Temperature: -40℃--+70℃ |
Humidity: 30%--95% |
Safety Level: IP67 |
Accessories: Checkpoint Tag+charger+Guard Tag+USB cable |
TFT color screen withChinese / English display;
Tag reading: StandardEM125KHz, optional ISO 15693 / 14443A/B protocol.
IP54 Water &Dust-proof, durable for drop test of 1.2 meters.
Built-in memory:Standard 2G TF card, enough to store over 100,000pcs records.
Indication on low battery or full datacapacity;
Two-color plastic housing, elegant and compact;
Support USB direct communication with computer,no need station;
Safe and reliable,able to store data when power cut off, storage time up to 20 years.
PCB design with reserved room for wirelessmodule extension to add GPRS on-line function.
Reading distance: 3-6cm
RFID Contactless 125K/13.56MHz
Storage: up to 100,000pcs records
Response time: ≤0.1s
Events: 20 items
LCD: color
Bit rate: 115200BPS
Interface: USB
Language: English / Simplified Chinese / Traditional Chinese
Power consumption: ≤100mA
Power supply: 3.6V Rechargeable Li-battery
Standard accessories: USB cable, charger, holster
