Model Number : T150VXHD
Category : Industrial Equipment
Material : metal material
Size/Proportion : 15 inch 4:3
Resolution : 1024*768
Brightness : 350 nits
Contrast : 800:1
Visible angle : 80/80/70/70(Typ.CR≥10)
Power supply : DC12V
Function interface : HD/VGA/BNC/USB
Custom : OEM/ODM/OBM
Display Pane | Brand | MEKT |
Model | T150VXHD | |
Size/Proportion | 15 inch 4:3 | |
Resolution | 1024*768 | |
Brightness | 350cd/㎡（Upgradable 1000cd/㎡） | |
Contrast | 800:1 | |
Cisplay color | 16.7m | |
Response time | 3-5ms | |
Visible angle | 80/80/70/70(Typ.CR≥10) | |
Pixel pitch(mm) | 0.297（H）X 0.297（V） | |
Draw quality | 3D noise reduction, high-definition signal, progressive scan | |

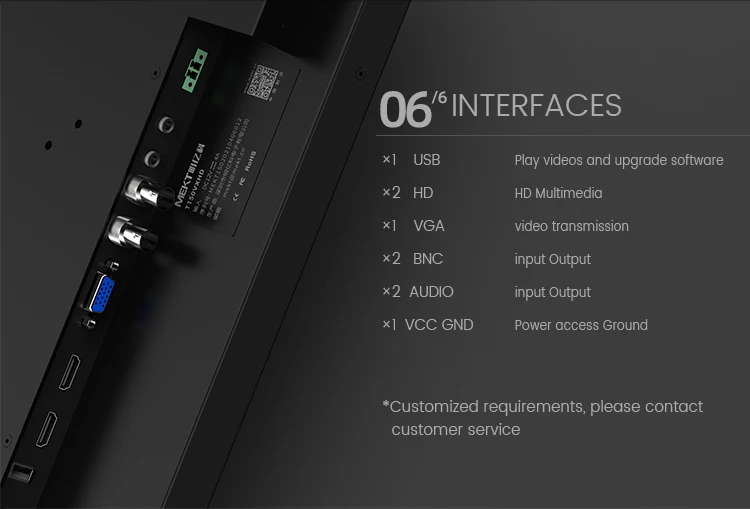

Interface | Power input | DC12V |
HD-MI | HD-MI*2 | |
VGA | VGA*1 | |
video input | BNC terminal*1 input | |
video output | BNC terminal*1 output | |
USB input | Play video and upgrade software functions | |
AUDIO | AUDIO input*1、AUDIO output*1 | |
Function | OSD | Chinese、English |
Computer input | Line synchronization range 30≈80KHZ | |
Field synchronization range 50≈75KHZ |
Proportional support | 4:3, 16:9, Panoramic | |
HDMI HD support | 480I、480P、720P、1080I、1080P | |
Screen display mode | / | |
Audio | Built-in speakers | |
Work Environment | Operating Temperature/humidity | -10℃ to +60℃/ 0-80% relative humidity, no condensation |
Storage Temperature/humidity | -10℃ to +65℃/ 0-90% relative humidity, no condensation | |
Equipment Usage | Application area | Military equipment, aerospace equipment, rail transit/communication, professional photography display, smart supermarket, smart robot, smart meeting room, factory assembly line\POS cash register, car GPS, elevator entrance, commercial office building, exhibition site, etc. occasion |
Equipment Cleaning | Cleaning method | Spray the screen cleaning liquid or clean water on the surface of the soft lens cloth to wipe the screen. Do not use alcohol, strong acid, or strong alkali to wipe the screen. The shell can be wiped with a soft towel or lens cloth. |
Product Service | After service | one-year warranty and lifelong maintenance |
Customized service | OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
