Certification : CE,FCC
Working Frequency : 2.4GHz
Model Number : MS88SF3
Port Number : 48
Type : BLE
Bluetooth version : 5.1
Chipset : Nordic nRF52840 (Optional nRF52833)
GPIO : 48
Flash : 1MB
RAM : 256KB
Transmission power : Max. +8dBm
Antenna : PCB
Operation Voltage : 1.8-5.5V
Frequency | 2400-2483MHz | |||
Max Output Power | +8dBm | |||
Single Power Supply | 1.8-5.5V | |||
GPIO Quantity | 48 | |||

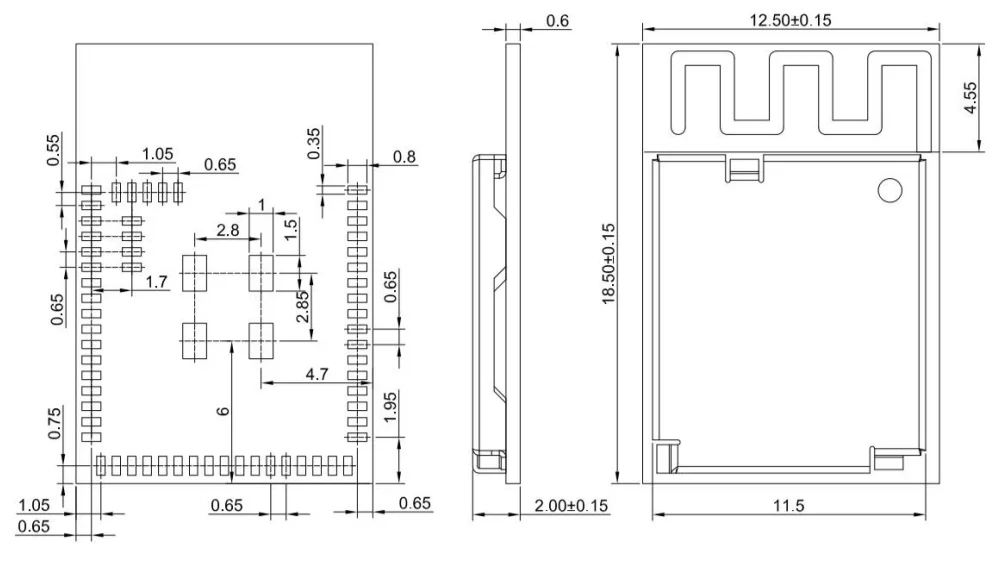

Module Size | 18.5*12.5*2mm | |||
Operating Temperature Range | -40 to 80 degree Cesius | |||
Flash Memory/RAM | 1M/256 KB | |||
MCU | 32-bit ARM CortexTM M4 CPU | |||
Antenna Type | PCB | |||
Range | 1Mbps: up to 250 meters in open space 125kbps: up to 300 meters in open space | |||
Receiver Sensitivity | -96 dBm | |||
TX power | +8dBm to -20dBm | |||
Certification | EPL/QDID,FCC,CE,IC,TELEC/MIC,RCM,WPC,RoHS, REACH | |||
