DC3V 3.7V 0408，412，612，615，617.716，720，816，8520，1020，8523 Ultrahigh Speed Coreless Motor RC Drone Tail Engine UAV Accessories

(0 评论)
所售:
内部产品
价钱:
$0.15 - $1.05 /pc
Speed(RPM):
数量:
(189981 可用)
总价:
退款:
查看政策
分享:
畅销产品
描述 评论

Certification : NONE

Continuous Current(A) : not clear

Output Power : not clear

Commutation : Brush

Type : Micro Motor

Protect Feature : Totally Enclosed

Construction : Permanent Magnet

Usage : Home Appliance

Efficiency : IE 1

Model Number : coreless motor

Torque : not clear





Tips1:The numbers of different models represent different sizes of motors;

for example, 412 is 4mm * 12mm, 8520 is 8.5mm * 20mm


Type A is a red and blue line, and type B is a black and white line.

All motors can be CW or CCW.

Tips2:

There are propellers in our shop, and there are more discounts when buying motors and propellers together.



Model: 0408



[Diameter]: 4mm

[Length]: 8mm

[Speed]: about 48,000 rpm at 3V

[Motor shaft diameter]: 0.7mm

[Motor shaft length]: 2mm

[wire length]: about 35mm

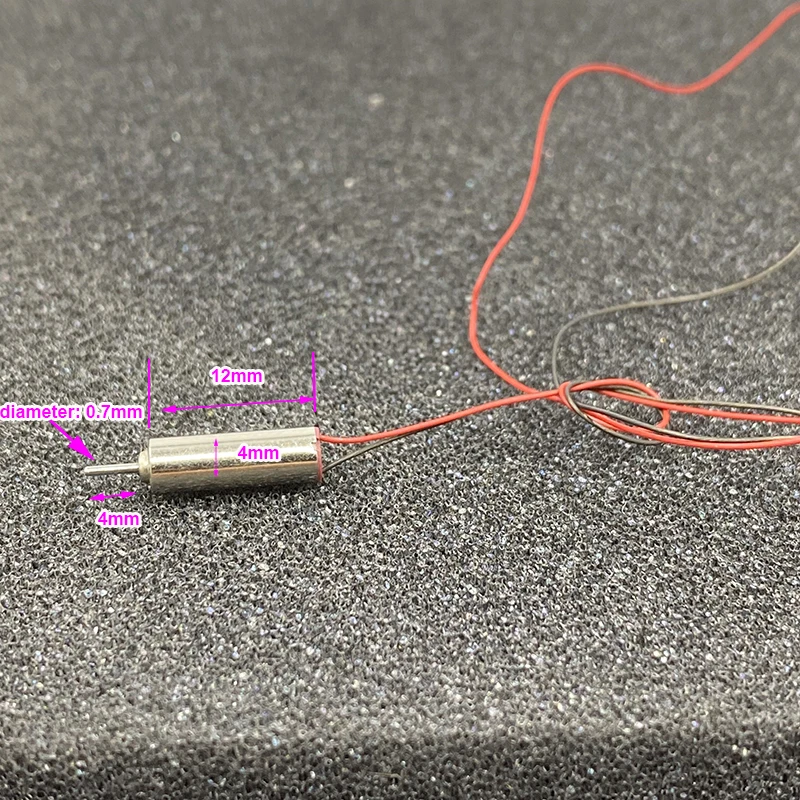

Model: 412
Output shaft: 4 mm
Radial shaft: 0.7 mm
Lead length: about 180mm
Voltage: 3.7V
Current: 30 ma
Speed: about 60000 RPM



Model: 612

Output shaft: 0.8 MM
Output shaft length: 5.5 MM
Weight: 1.4 g
Voltage: 3.7 V
Speed: about 50000 RPM



Model: 615

Output shaft: 0.8 mm
Output shaft length: 5.5mm
Line length:  55 MM
Weight: 2 g
Voltage: 3.7 V
Speed: around 45000 RPM



Model: 716A,716B
( 716A is Red&Blue wires; 716B is Black&White wires.)

[Size]: 7mm X 16mm
[Diameter Shaft]: 0.8mm
[Shaft length]: 5 mm
[Line length]: 80 mm
[Voltage]: 3.7V
[No load Speed]: about 50000 rpm
[Weight]: 2.9 grams

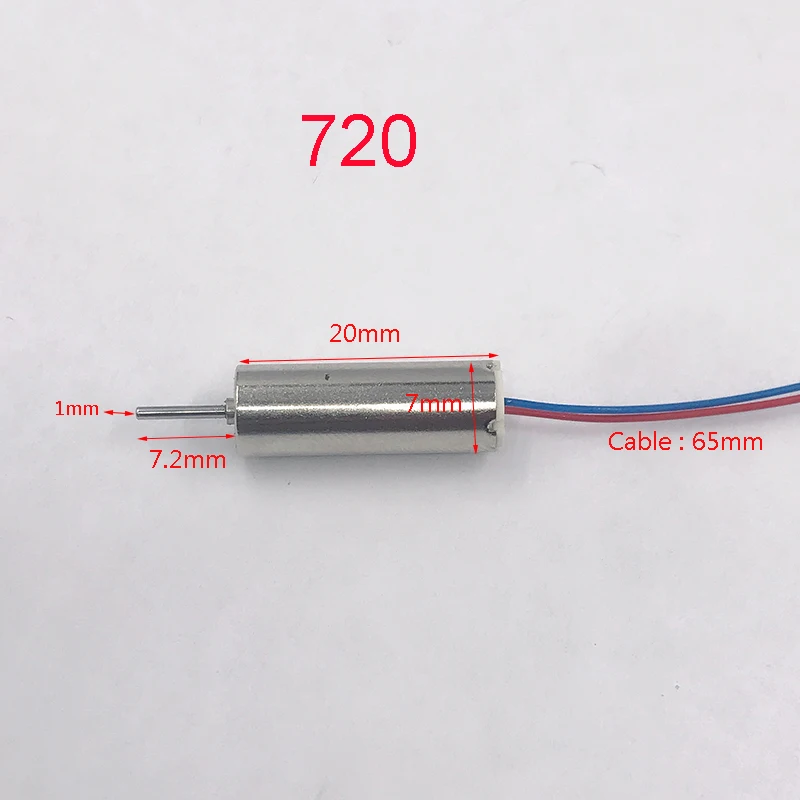

Model: 720

Voltage: 3.7V

Current: about 120ma

Speed: about 50000



Model: 816

[Size]: 8 mm * 16.5 mm

[Voltage]: 3.7V

[Shaft diameter]: 1 mm
【Shaft Length】: 5.5 mm

[Line length]: 130mm

[Weight]: 4.2 grams

【Current】: about 150 ma

[Speed]: No-load 50000 rpm



Model: 8520

Weight: 5.2 g

Voltage: 3.4 V

No-load current: 240ma

Speed: about 52000 rpm


Model: 1020 ( Change new style)

Size: 10mm * 20mm

Diameter: 1 mm

Shaft length: 5 mm

Voltage: 3.7 V

Speed: about 40000rpm

Lead wire:  150mm

Weight: 7.6g




Motor parameter: 8523
1.Motor diameter: 8.5MM
2.Motor length: 23MM
3.Output shaft diameter: 1.2MM
4.Output shaft length: 5.5MM
5.Cable length: 75MM
6.Weight: 6g
7.Voltage: 7.4V
8.Speed: 40000RPM







Package Include:



Motor * 1pcs
