Step 1: Please shut down the computer before installing the riser card.
Step 2: Connect the PCI-E slot of the motherboard, then use the USB 3.0 data cable adapter to connect the two USB ports and connect the power adapter.
Step 3: After completing the above two steps, do not rush to insert your PCI-E card, restart the computer, check whether your computer recognizes the adapter card, if not, repeat the above operations.
(Note: This PCIE riser card cannot be connected to USB devices because the 4 USB ports carry PCI-E signals, not USB signals.)
PCIe Splitter 1 to 4 Multiplier Riser Card
ASM 1184 CHIPS
The motherboard IC adopts high-quality ASM1184 chipset, which improves stability and durability.
With aluminum alloy heat sink, it can effectively dissipate excess heat and improve stability and durability.
PCIE 1X to 4 USB 3.0 Card
The PCIe expansion card mainly solves the problem of less PCIE interfaces on the motherboard, and one port can be expanded to 4.

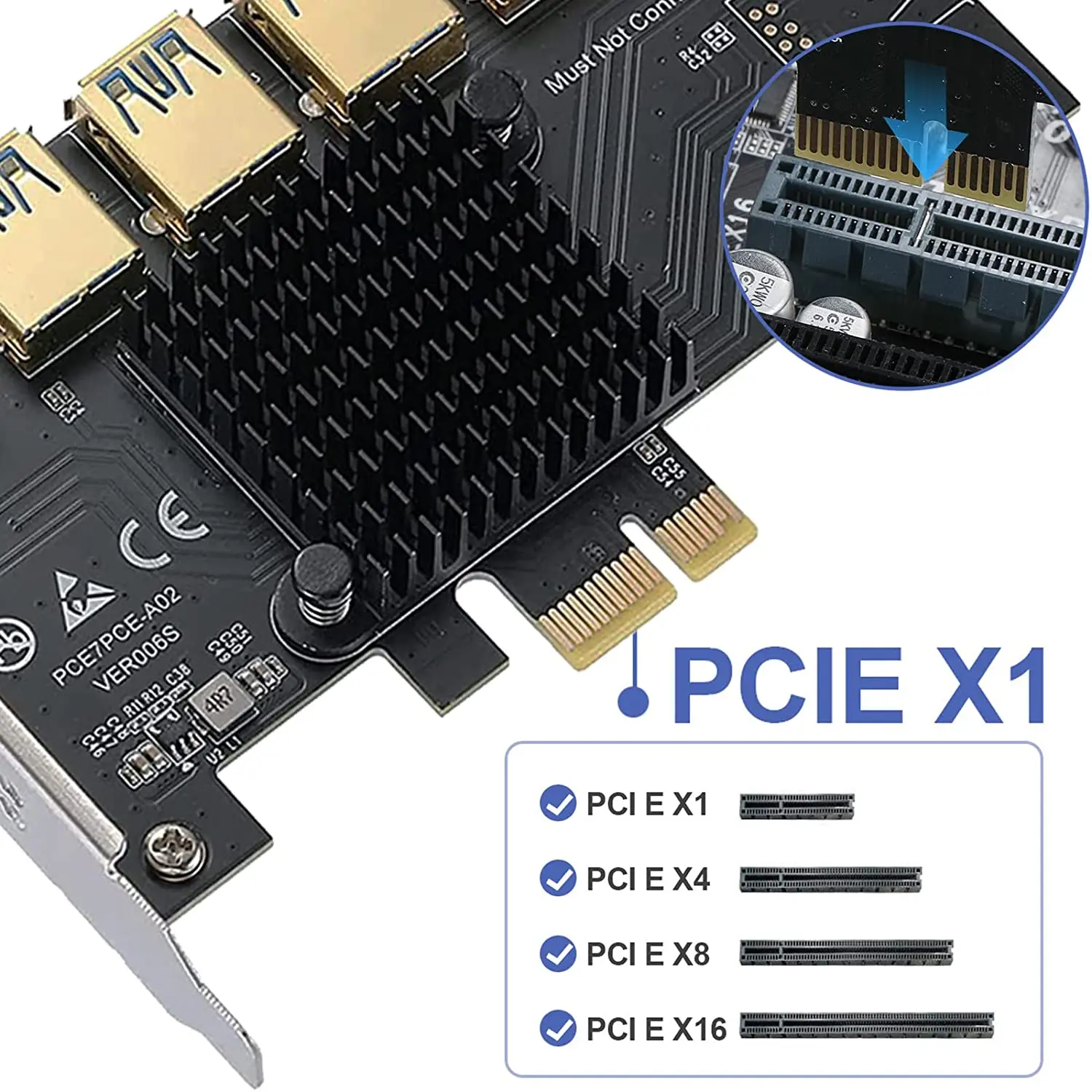

The interface is PCI-E X 1, compatible with X1, X4, X8, X16 interfaces
PCIE 1 to 4 Riser Card
The main control board adopts the direct power supply mode of PCI Express interface, without external power supply.
(The motherboard must be powered off before installation)
