Two-way Audio : NO
Compression Format : H.264
Wireless Security : WEP
Hard drive Interface Type : SATA
e-Cloud(P2P) : YES
IP Mode : Static IP address
Hard Drive Size : 3.5''
DVR Power Supply : DC12V
Video Input Interface : BNC (1.0 Vp-p, 75Ω)
Supported Mobile Systems : iPhone OS,Android
Audio Input : 1 RCA
Supported Operating Systems : Microsoft Windows 2000,Microsoft Windows ME,Microsoft Windows Vista,Microsoft Windows 98,Microsoft Windows 7
Video Standard : PAL
Smart home platform : NONE
Backup Type : Hard Drive
Video Resolution : 1080N
Alarm Action : FTP Photo,Email Photo,Local Alarm
Certification : NONE
Network Interface : RJ45 10/100M
Audio Output : 1CH RCA
HDD Capacity : None
Communication Interface : RS232
Technology : Analog,AHD,HDCVI,HDTVI,Network
Network Protocol : TCP/IP

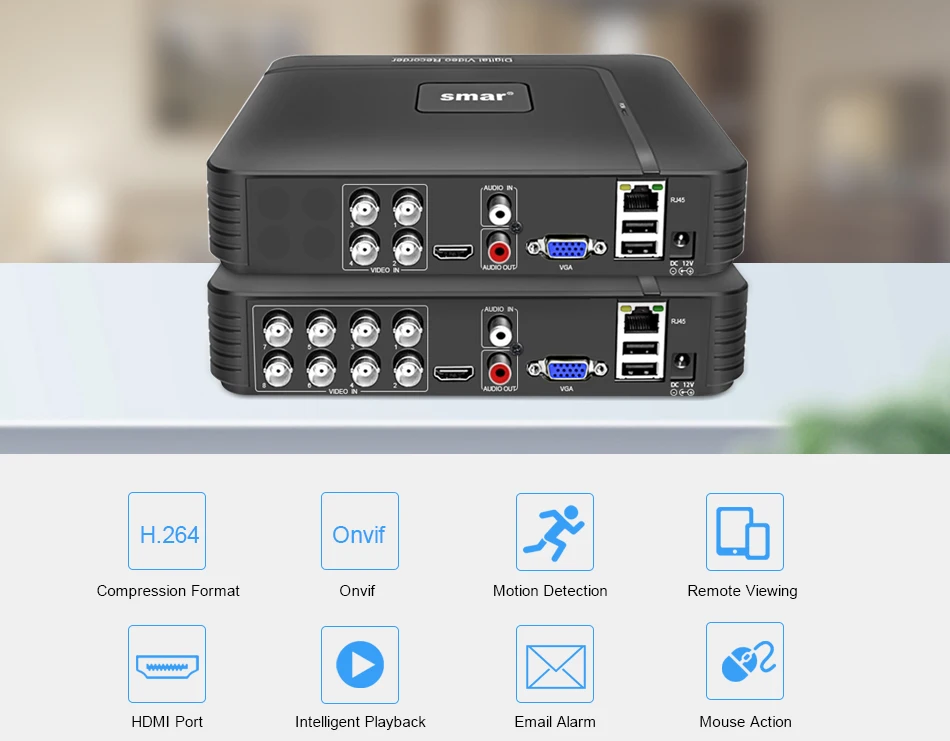

Name : 4ch/8ch Hybrid DVR
Resolution : 5M-N1080P 960P 720P
Feature : Support AHD Camera, IP Camera, Analog Camera
Compression Format : H.264
Video Input : 4 Channel & 8 Channel
Audio Input : 1 Channel

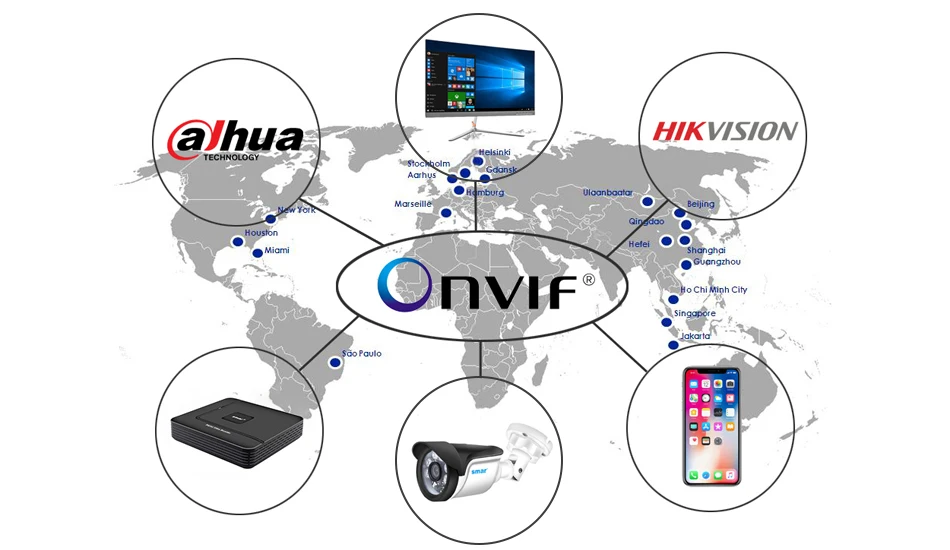

Onvif & P2P : Support
Phone : Mobile Phone, I-Pad, I-Phone, Etc

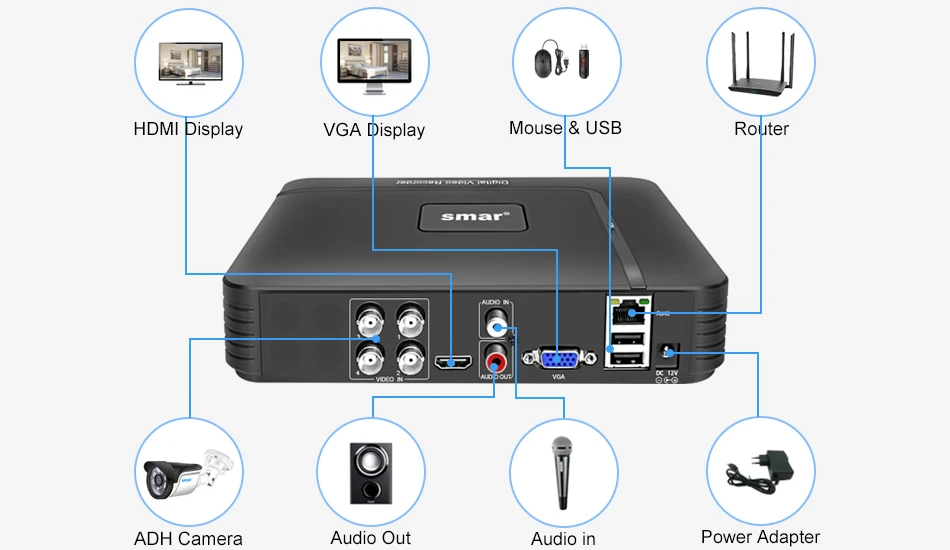

Display : VGA, HDMI Output
Power : Eu Standard, AU/UK Optional
APP : XMEYE
Feature:
1. H.264 video compression, 5MP/1080P/720P / 960H HD resolution, VGA & HDMI output.
2.720P/960H/1080P/5MP Backup Via USB Drive + 3.5'' Hard disk (up to 6T )( NO Hard disk in the package)
3. 1 Audio in / 1ch audio out + 2pcs USB Port
4. P2P (cloud), no need any port forwarding for remote monitor anymore.

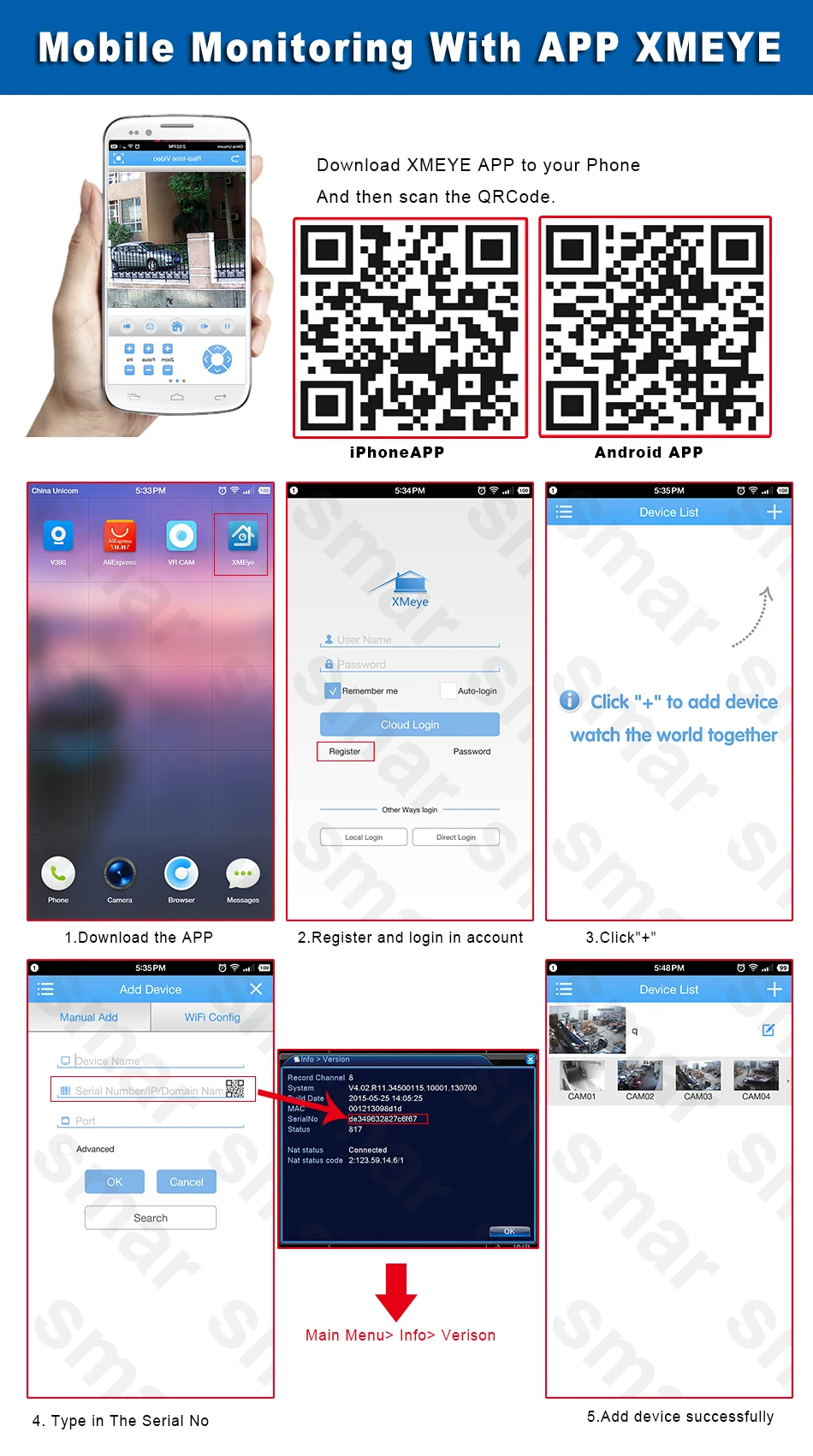

5. Smart phone, PC remote surveillance. APP Name:XMeye
6. Motion detection and email alarm;
1* 4CH/8CH Hybrid DVR
1* USB Mouse
1* DC12V Power Adapter
1* User Manual
Specifications for 4CH/8CH
System | Model | A1204NHS(A1004N5) | A1208NHS |
Video compression | H.264(High Profile) | ||
Operating System | Embedded Linux | ||
System Resources | Simultaneous multi-channel real-time recording, playback, network operation,USB backup | ||
Interface | User Interface | Support 16-bit true color graphical menu interface and mouse operation | |
Preview Screen | take analog channel as an example, other is base on the selected channel mode | ||
1/4 | 1/4/8/9 | ||
Video | Video Standards | PAL(625TVL,50f/s);NTSC(525TVL,60f/s) | |
display quality | VGA,HDMI:HD | ||
playback quality | Max.1080P;under analog modeAHDL(960H)/D1/HD1/CIF/QCIF | ||
Preview capability | 4*1080N@25fps | 8*1080N@25fps | |
Encode capability | 4*1080N@25fps | 8*1080N@12fps/4*1080P@15fps | |
Decode capability | 1*1080N@25fps | 8*1080N@12fps/4*1080P@15fps | |
Channel Type | AHDNH/1080N 4CH | AHDNH/1080N 8CH 1080P 4CH | |
Motion Detection | Zones: 192 (16*12) detection zones,sensitivity: multi-level sensitivity (Only local channels) | ||
Audio | Audio Conpression | G711A | |
Intercom | Unsupport | ||
Record & Playback | Recording Mode | Manual>Alarm>Video Detection>Continuous | |
Local Payback | 1*4M | 1*5M/2*1080P | |
Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | ||
Storage & Backup | Space Occupation | Video: 1080p 35-45G/day/ch, 720p 20-30G/day/ch( According to the h 264 compression standard, for reference only, h 265 reduces storage space by half compared with h 264); Audio: 691.2M/day/channel | |
Record Storage | Local HDD,network | ||
Backup Mode | Network backup, USB hard disk, USB burner, SATA burner | ||
interfaccia | BNC | N/A | |
Video Output | 1ch VGA,1ch HDMI | ||
Audio I/O | 0/0 | ||
Alarm I/O | 0/0 | ||
Network interface | 1*RJ45 10M/100M self-adaptive Ethernet port | ||
Interfaccia USB | 2* USB 2.0 | ||
Hard Disk | 1*SATA port (Max 8TB/per) 3.5”HDD | ||
Environmental | ONVIF | ONVIF2.3 | |
Power Supply | DC12V/2A(if you use more than 2tb hdd, please change 12V4A or more adaptor by yourself) | ||
Consumption | <10W(without HDD) | ||
Work Environment | Temperature:0℃ -55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp | ||

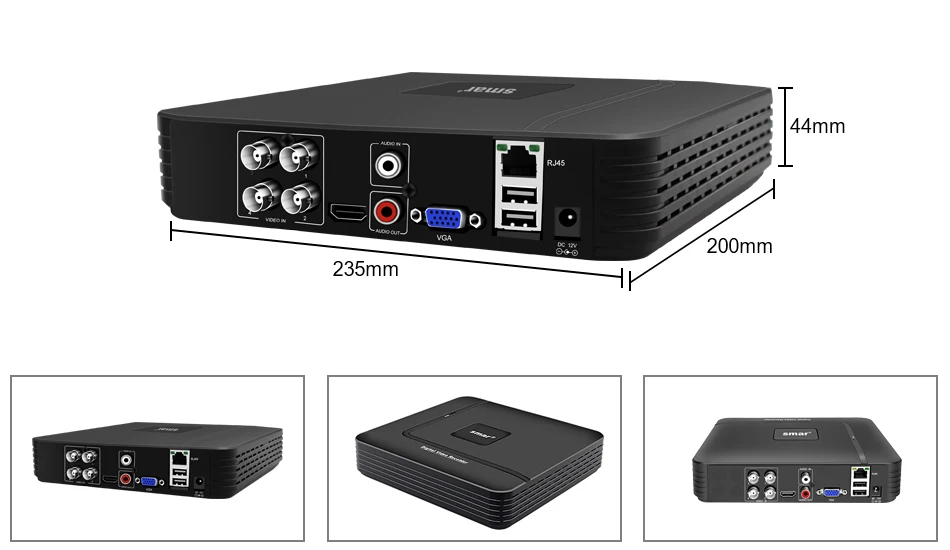

Dimension | 200mm(length)*200mm(width)* 42mm(height) | ||
Weight | 0.43KG(about) | 0.46KG(about) | |
Package weight | 0.74KG(about) | 0.77KG(about) |

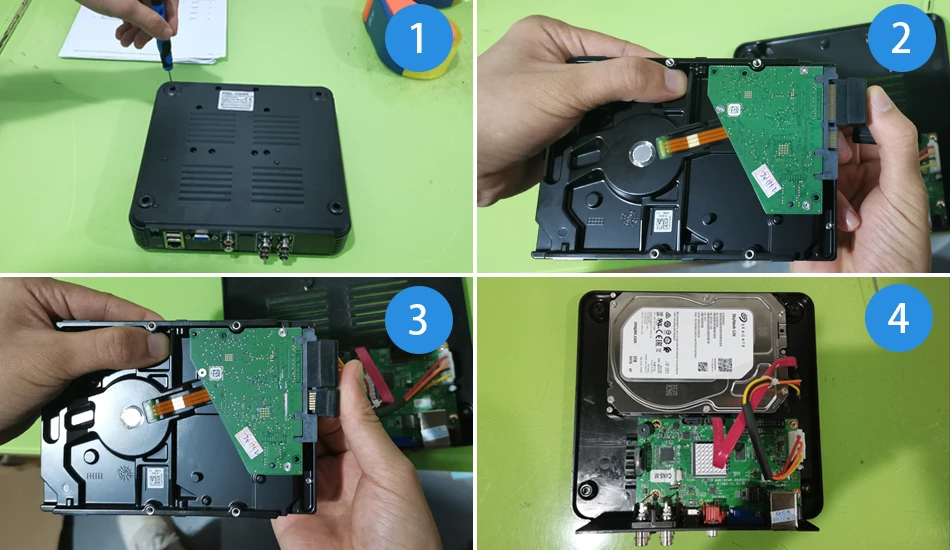

1. Our 4CH/8CH Hybrid not include HDD;
2. It support 3.5" SATA HDD ,Max support 1*6TB HDD.
3. We will recommend professional 3.5 "SATA hard disk for you; 1TB,2TB,3TB,4TB Optional,please click below picture

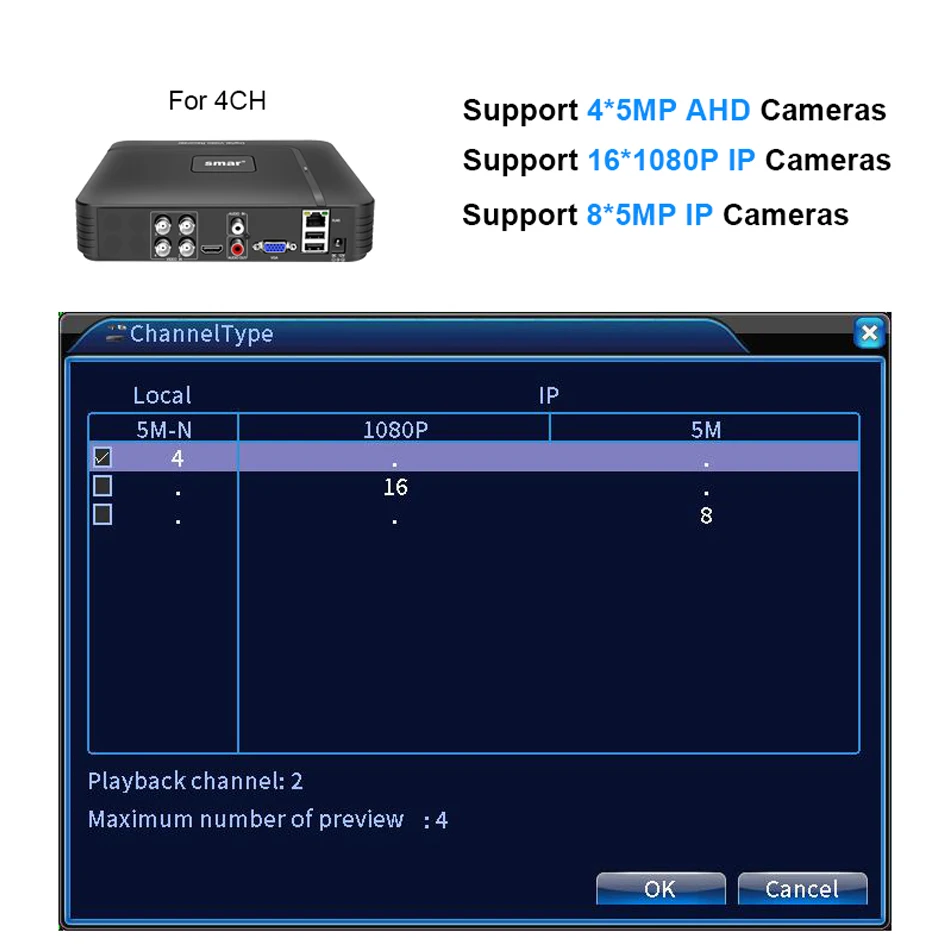

1. ChannelType of 4CH;
2. AHD Mode: Support 4*5MP AHD Cameras
3. Network Mode: Support 16*1080P IP Cameras
or 8*5MP IP Cameras

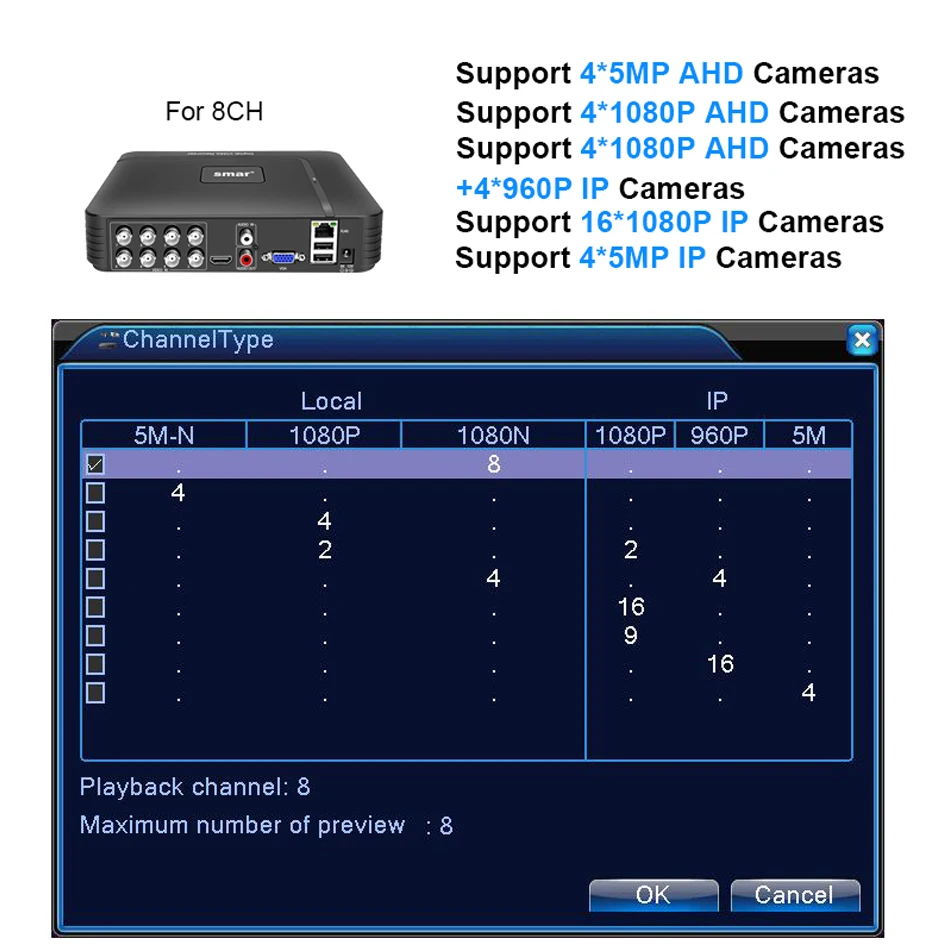

1. ChannelType of 8CH;
2. AHD Mode: Support 4*5MP AHD Cameras or 4*1080P AHD Cameras
3. Network Mode: Support 16*1080P IP
Cameras or 4*5MP IP Cameras

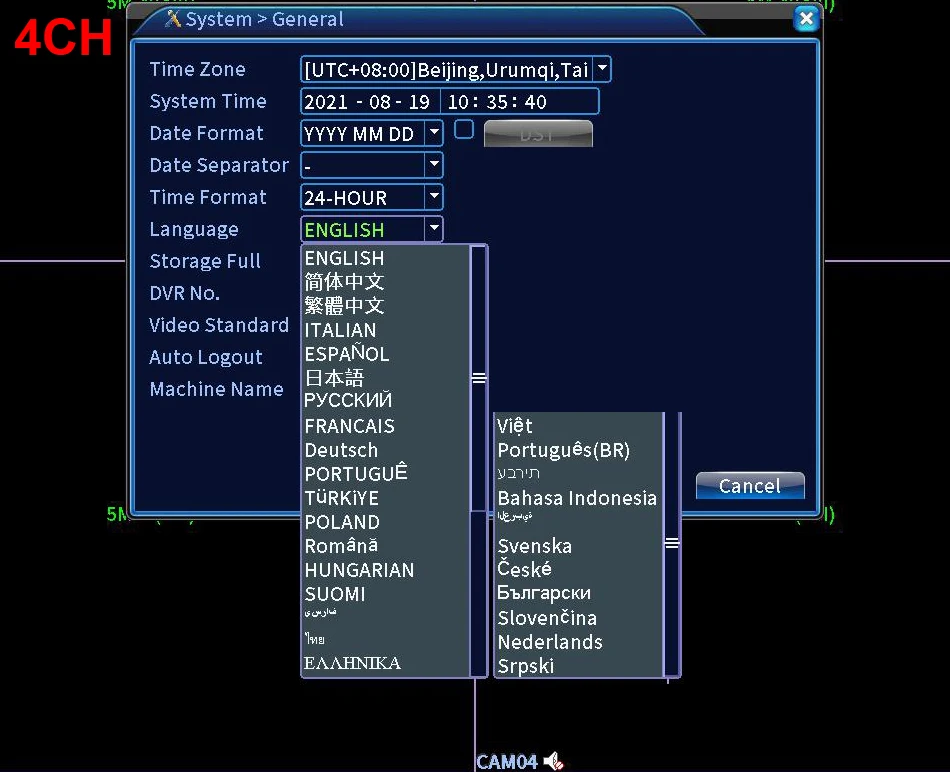

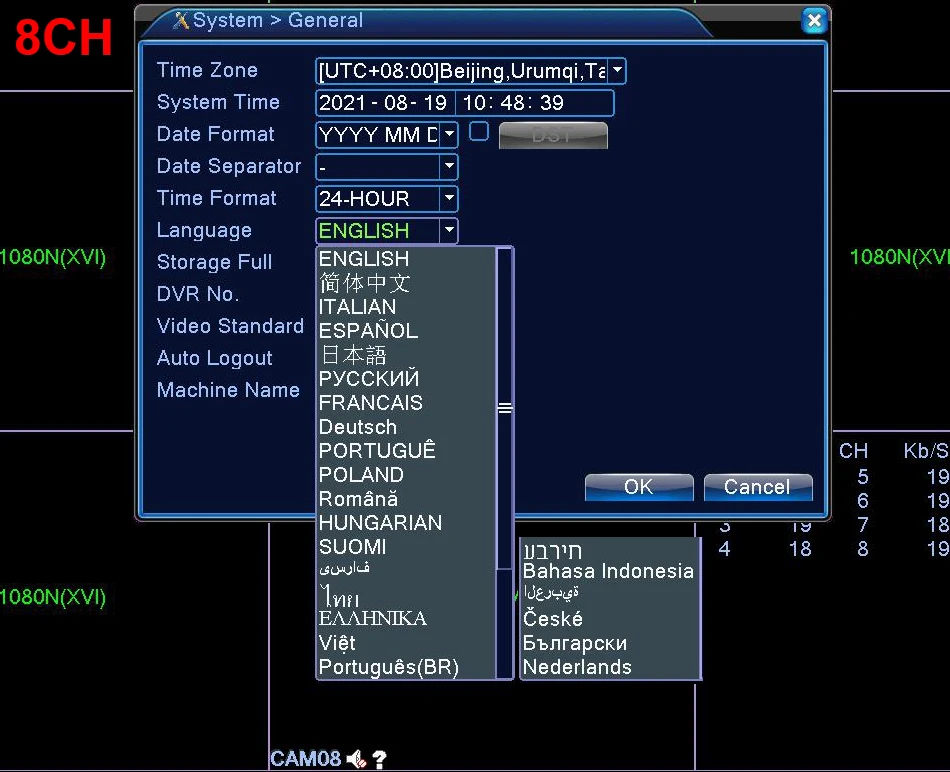

It support English, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, polish, Hebrew, etc......
When the Detect Motion happened in your home and office. you'll get instant alarming email when the home or office is invaded. You can even ensure that false alarms are avoided by setting the motion detection "mask"to block areas with constant movement.
If you used Network Mode:
Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera; As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Can't used the Motion Detection Function with Our DVR. ( Please note before when you buying)
For 4CH DVR:
