is_customized : Yes
Certification : CE,FCC
Model Number : 938BD+-I
Whole machine power : 750W
Hot air gun temperature : 100°C~480
Airflow type : Brushless fan gentle wind
Airflow : 120L/min (MAX)
Soldering iron power : 60W
Soldering iron temperature : 200°C~480°C

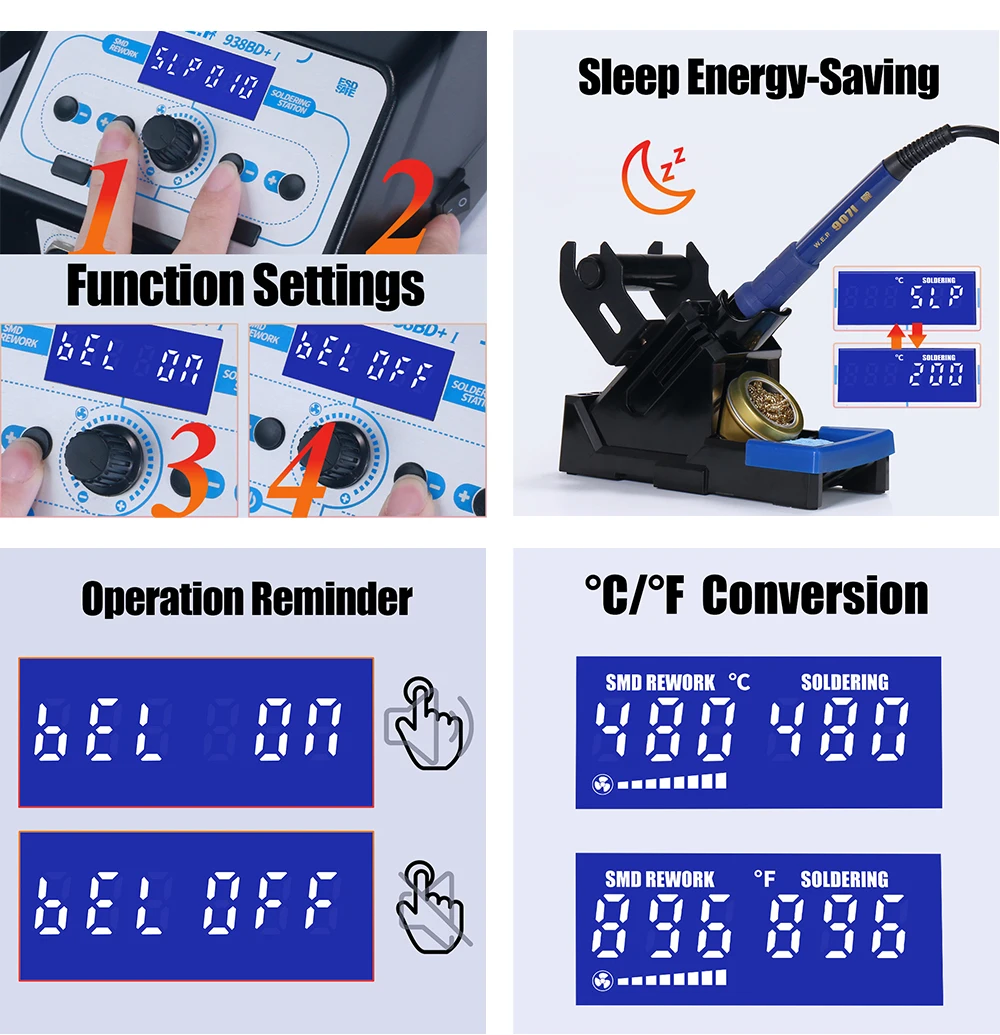

Function 1 : ℃/℉ temperature disply
Function 2 : 10 minutes sleep function for iron
Function 3 : Temperature correction
Function 4 : Sound adjustment
Function 5 : No-Air Protection
Parameter:
Whole machine part:
Power ≤750W
Work environment: 0~40°C
Storage temperature: -20~80°C
Storage Humidity: 35%~45%
Hot air gun part
Temperature range: 100°C~480
Temperature stability: ±2°C（Static state）
Airflow type: Brushless fan gentle wind
Airflow: 120L/min (MAX)
Soldering iron part
power: 60W
Temperature range: 200°C~480°C
Temperature stability: ±2°C (Static state)
Tip-to-ground impedance: ＜2Ω
Tip-to-ground voltage: ＜2mV
Function:

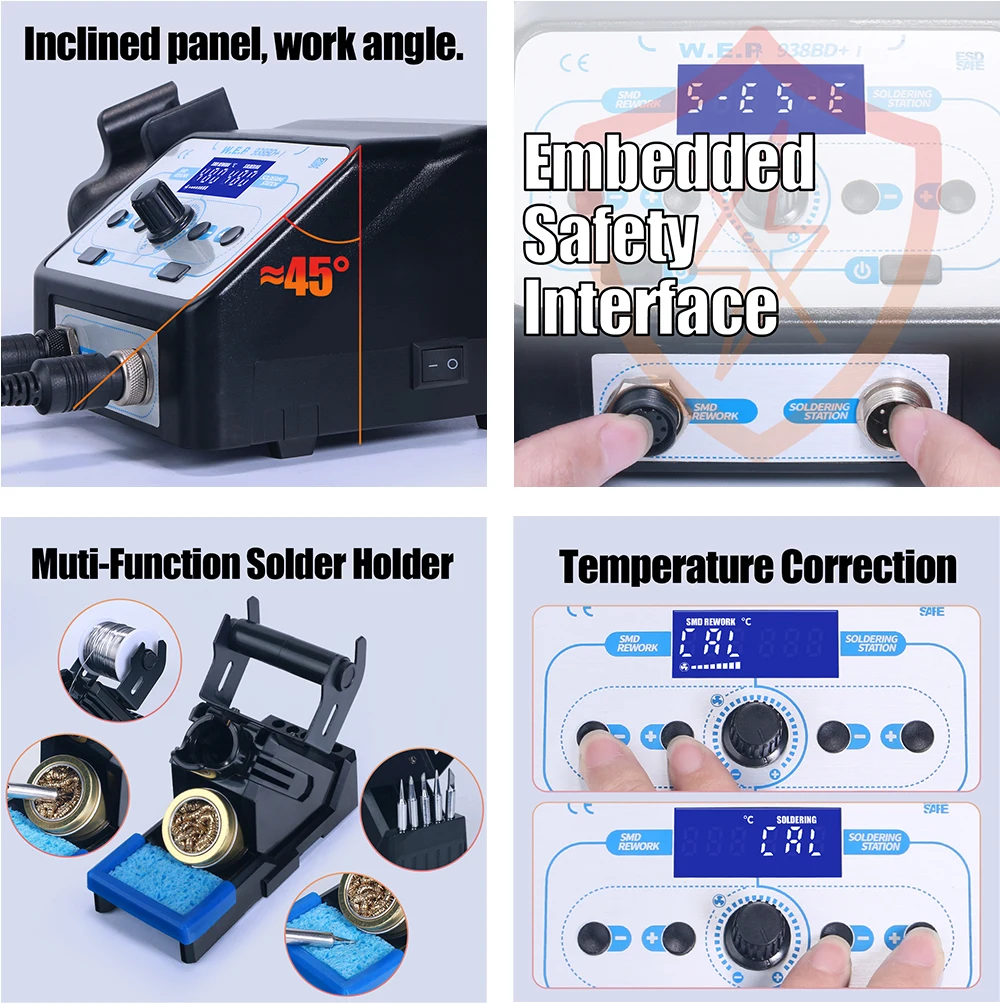

An Inclined panel, More suitable for your work angle.

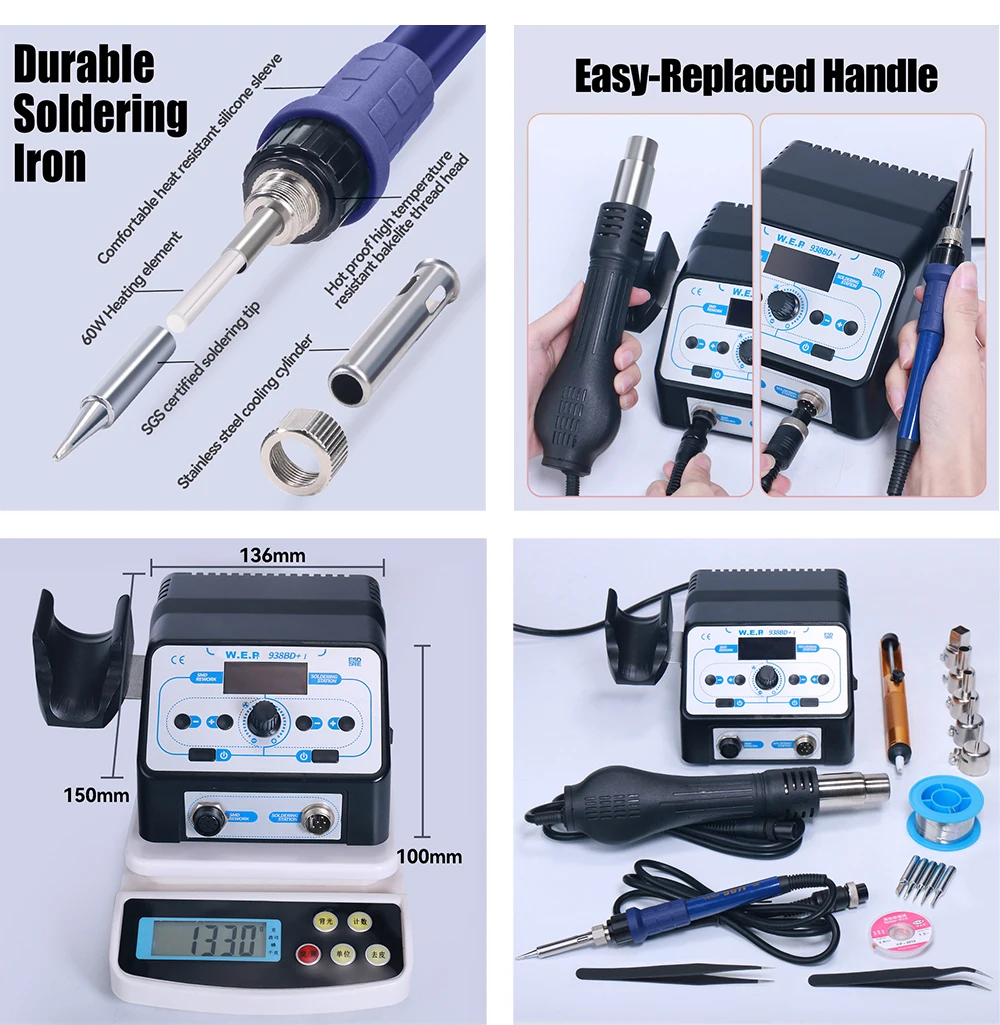

Pluggable Type Convenient to change.
Embedded Interface, Good for safe
High Powe Soldering Iron
Intelligent Temp. Correction, More accurate temperature for your soldering
C/F Temp. mode
No operation 10mins Start Sleep, Prevents the iron from Oxidizing effectively extends the lifespan of the soldreing iron tip and conserves energy.
Sound of press Button
How to use:
This unit is great for desoldering and soldering applications on small components ,such assoIC, CHIP, QFP,PLCC,BGA, SMD packaging, and more.This unit is especially suited for desoldering operations on sockets in in-line packaging.The unit's applications include heat shrinking, drying, paint removal, glue removal, defrosting, preheating, glue soldering, and more.
Different packages can be selected：
938BD+-I Package Content
1. WEP938BD+-I soldering station
2. soldering wire (1 pcs)
3. nozzles (4 pcs)
4. silver soldering tips (5 pcs)
5. tin suction wire (1 pcs)
6. tweezers (2 pcs)
7. XQ-5 suction tin pen(1 pcs)
